E-361 & E-371

Uses:

• First-In on structure fires, alarm activations and motor vehicle accidents

Specifications:

• 2021 Toyne/Spartan Gladiator LFD Chasis
• Seating for 8, 5 SCBA Seats
• Length – 31’10”  | Wheel Base – 189-1/2″ | Height – 10′-5″ | Width – 8′-9″
• Fifty (50) Gallon Diesel Fuel Tank

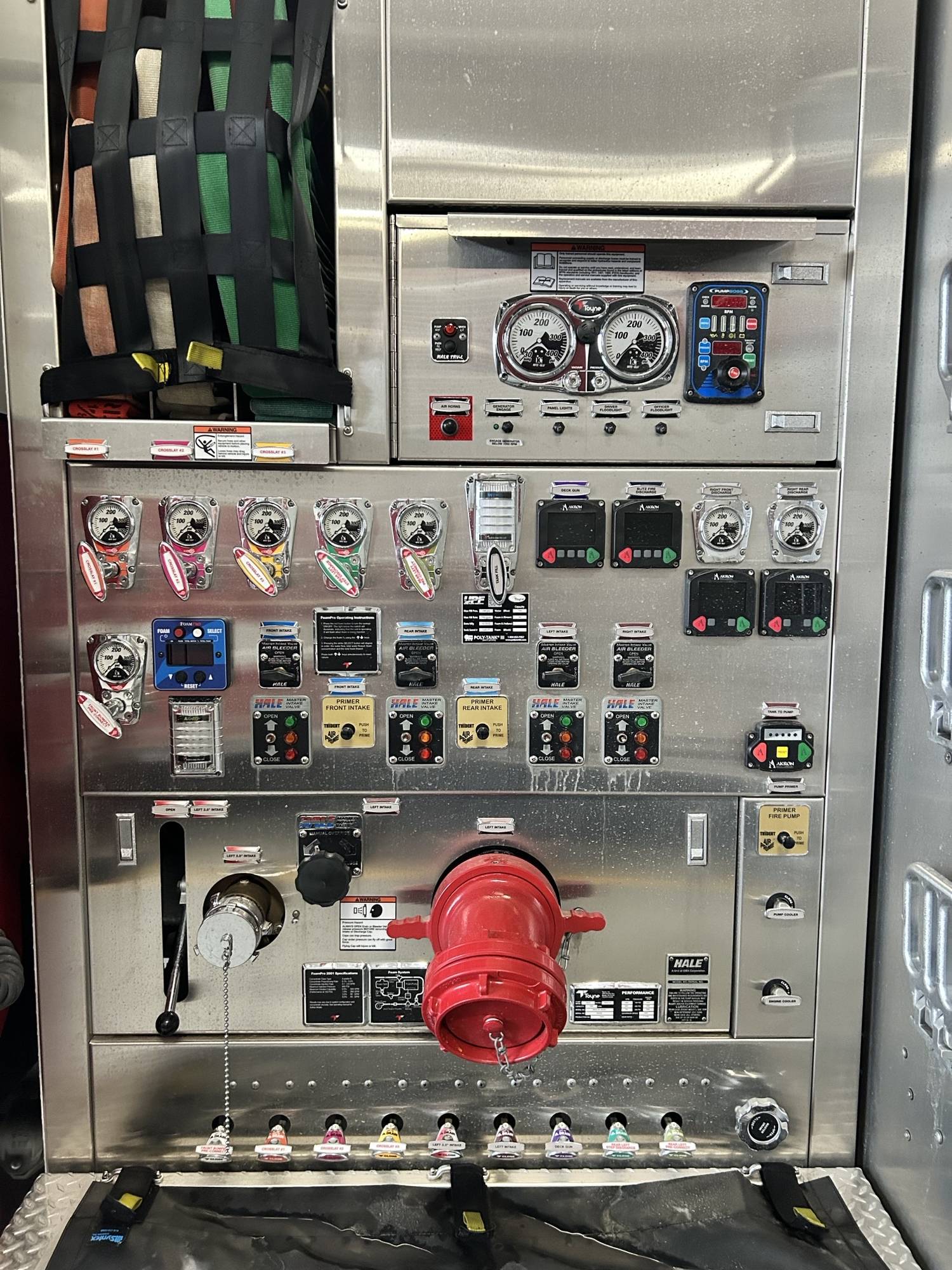

• Hale Q-Max XS 1500 GMP Two-Stage Pump
• 750 Gallong Poly-Tank
• 730-Gallon Class A Foam Tank
• Foam pro 2001 Class “A” Foam System
• Onan 6 kW Hydraulic Generator
• Intakes
  • (4) 6″ Intakes, each gated with a Hale MIV-E electric butterfly valve and suction primer
  • (2) 2 ½” Intakes, right and rear
  • (2) 4″ Discharges, right and rear, electronically actuated valves
  • (2)2 ½” Discharges, one each side, manually actuated valves
  • (2) 3″ Pre-Connect Discharge, deck gun, Blitzfire
  • (1)1 ¾” x 21 O’ Pre-Connected Crosslay, manually actuated valve
  • (1)1 ¾” x 260′ Pre-Connected Crosslay, manually actuated valve
  • (1) 2 ½” x 225′ Pre-Connected Crosslay, manually actuated valve
  • (1) 1 ¾” x 150″ Front Bumper Trash line (DAGS Load), manually actuated valve
  • (1) 2 ½” x 325′ Rear Pre-Connect, manually actuated valve

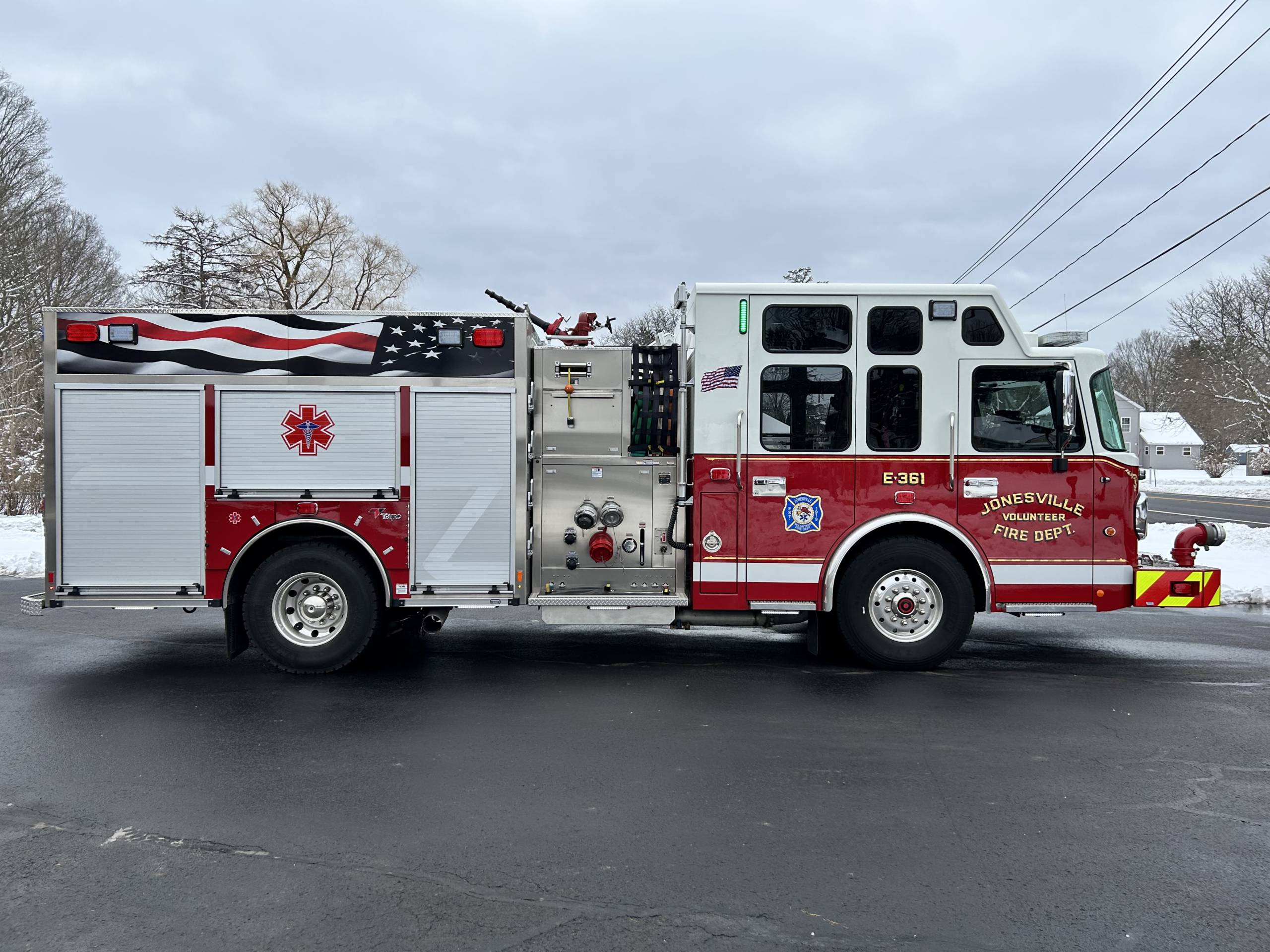

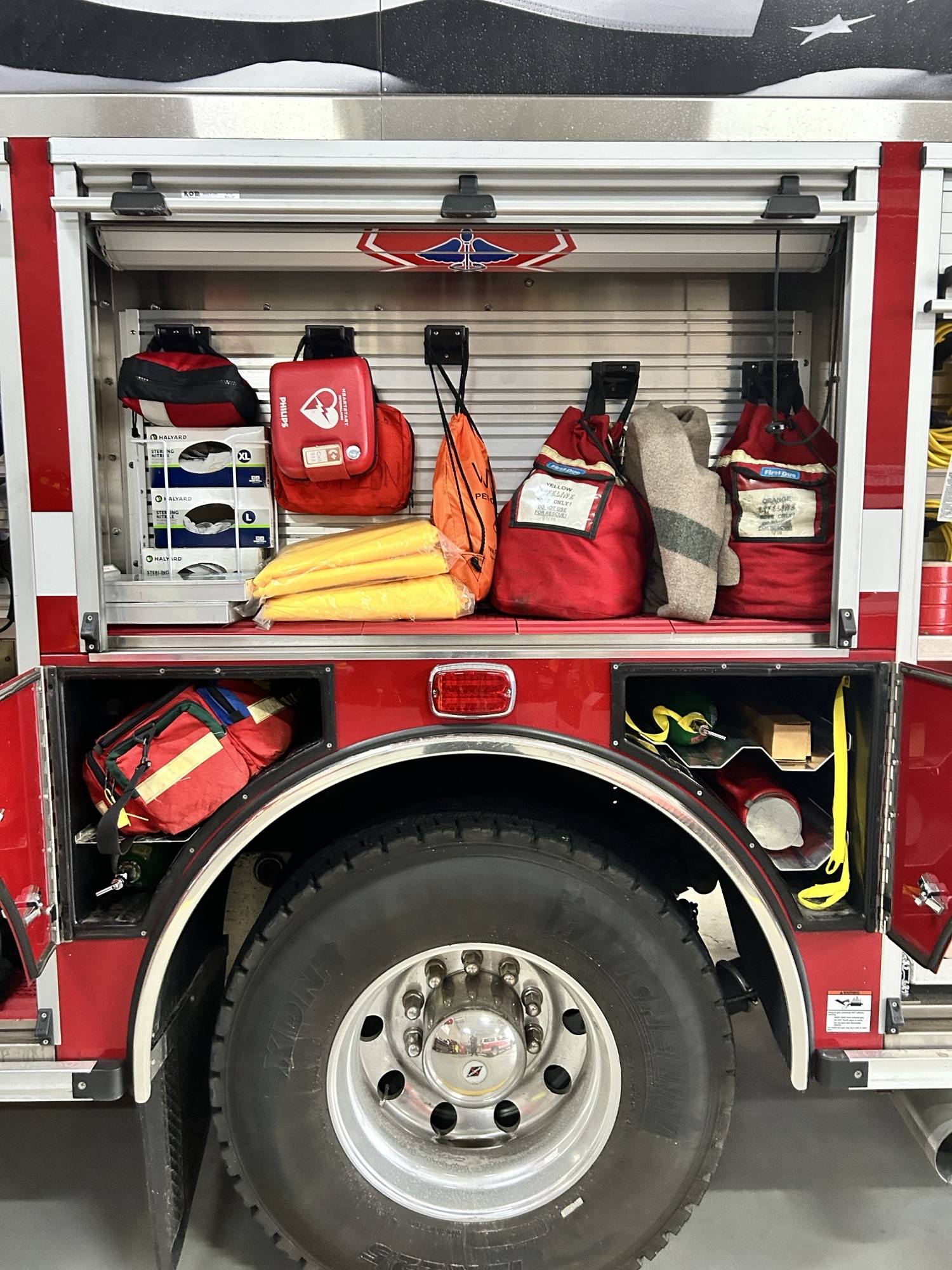

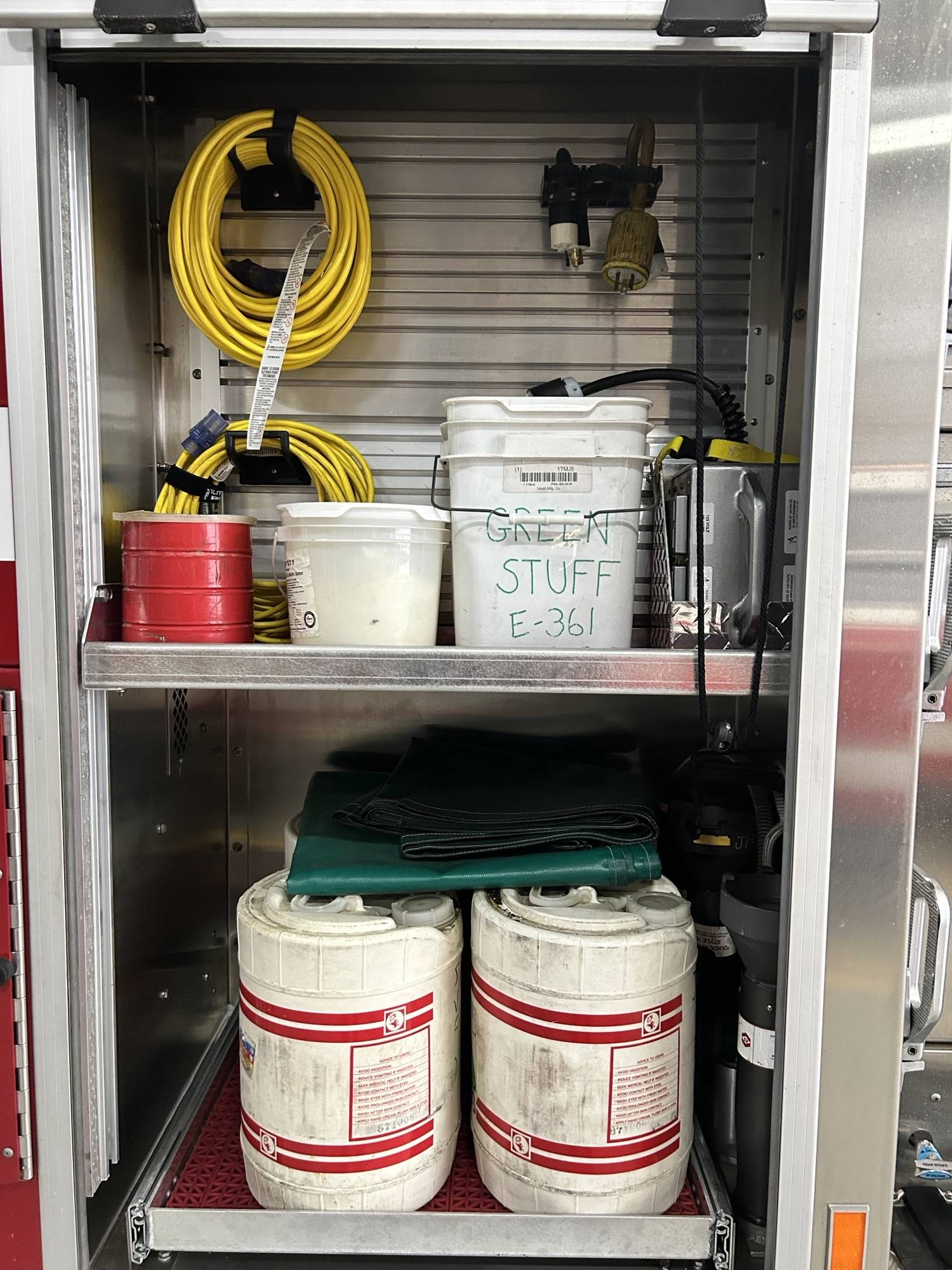

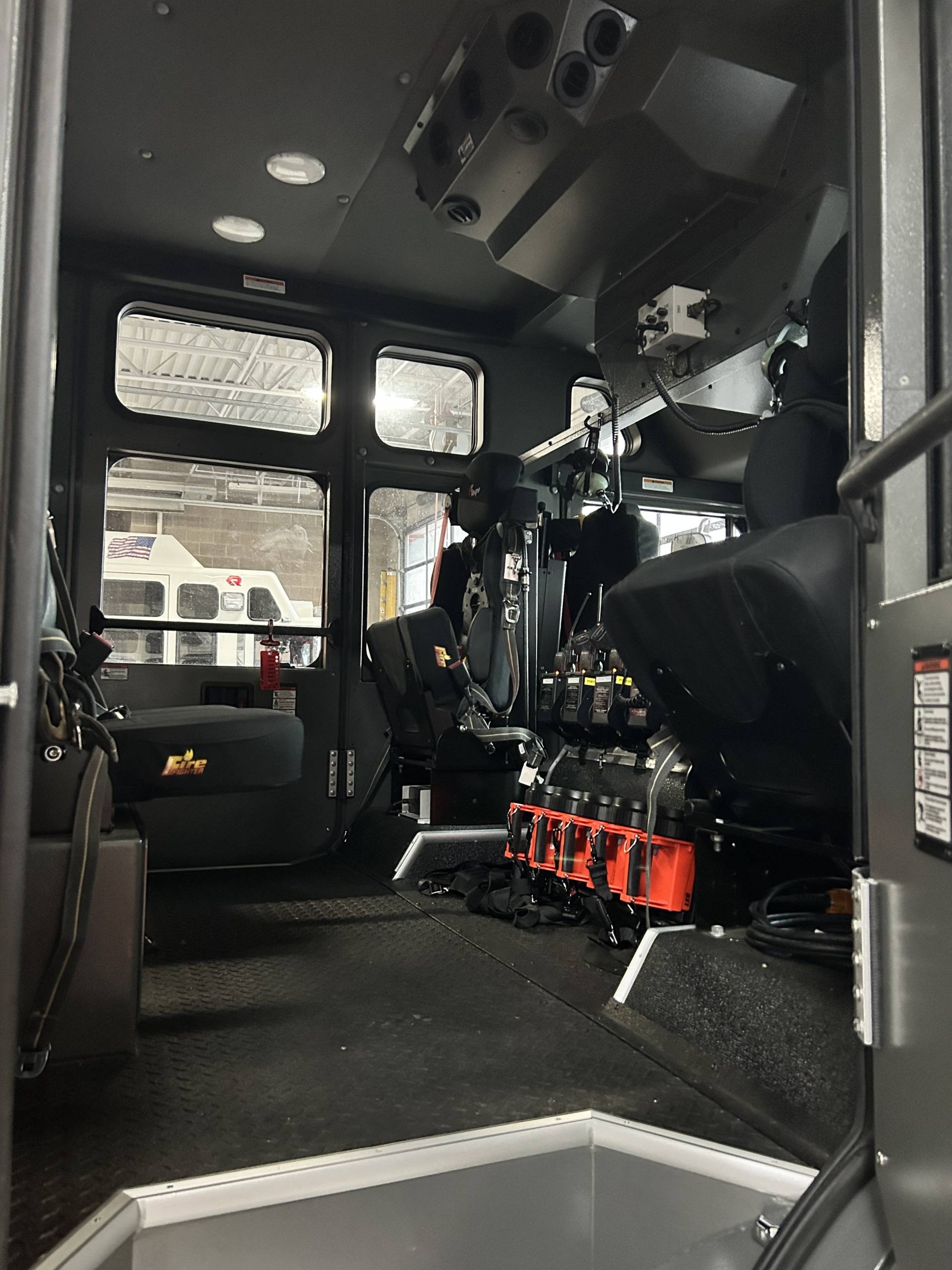

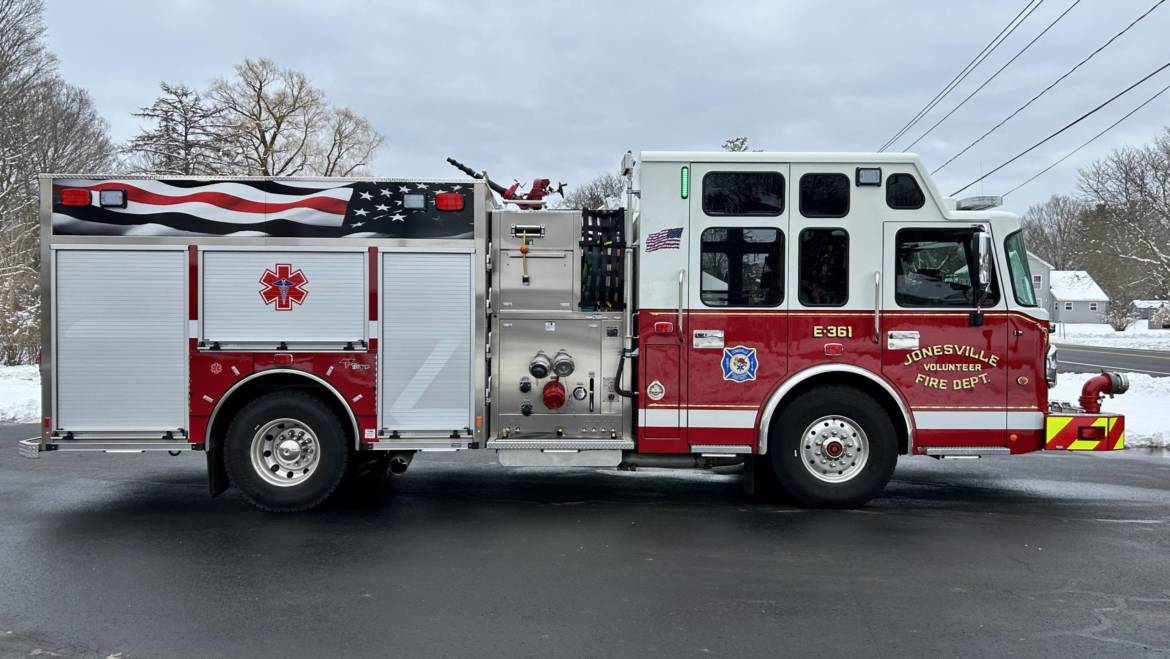

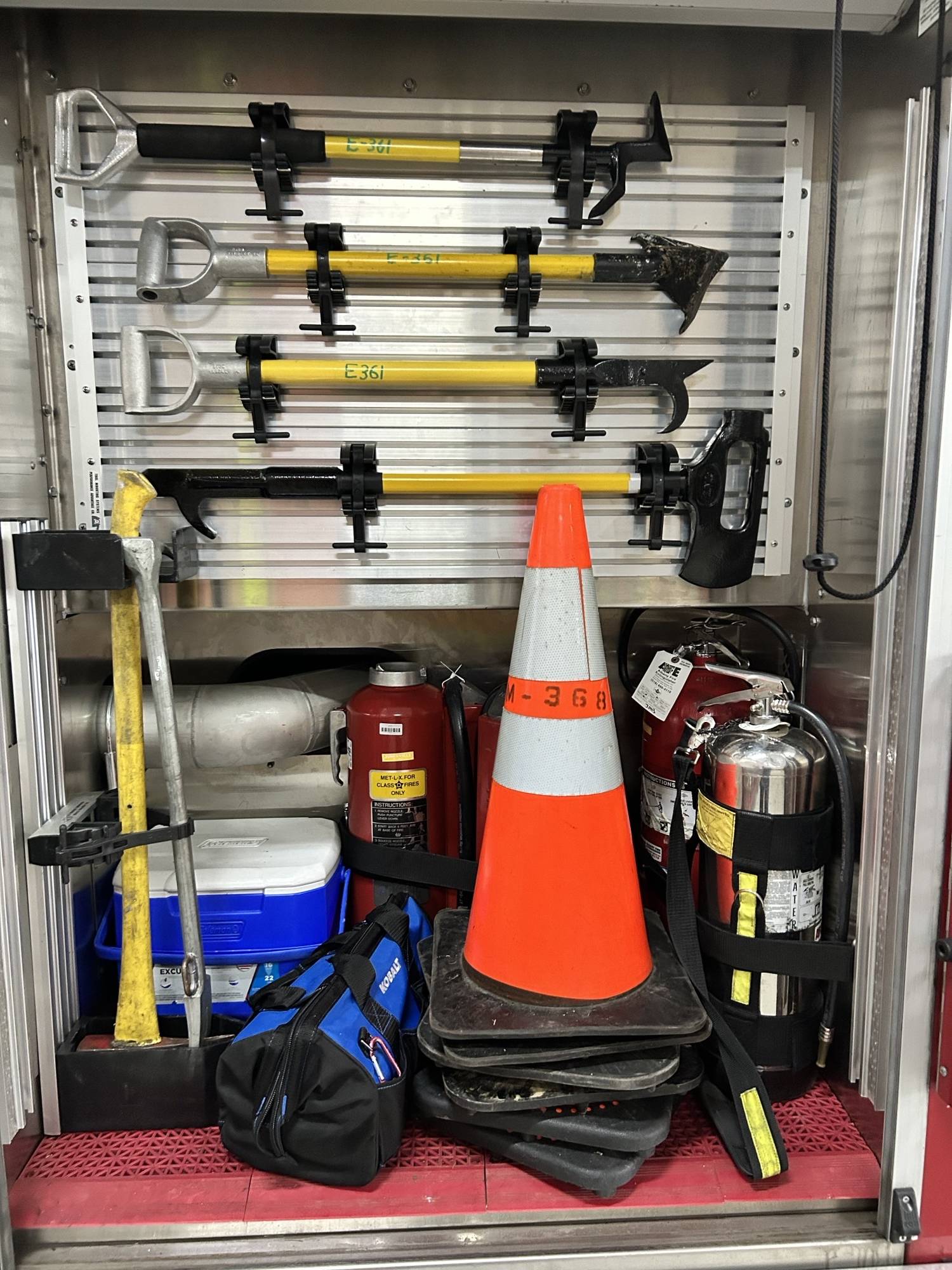

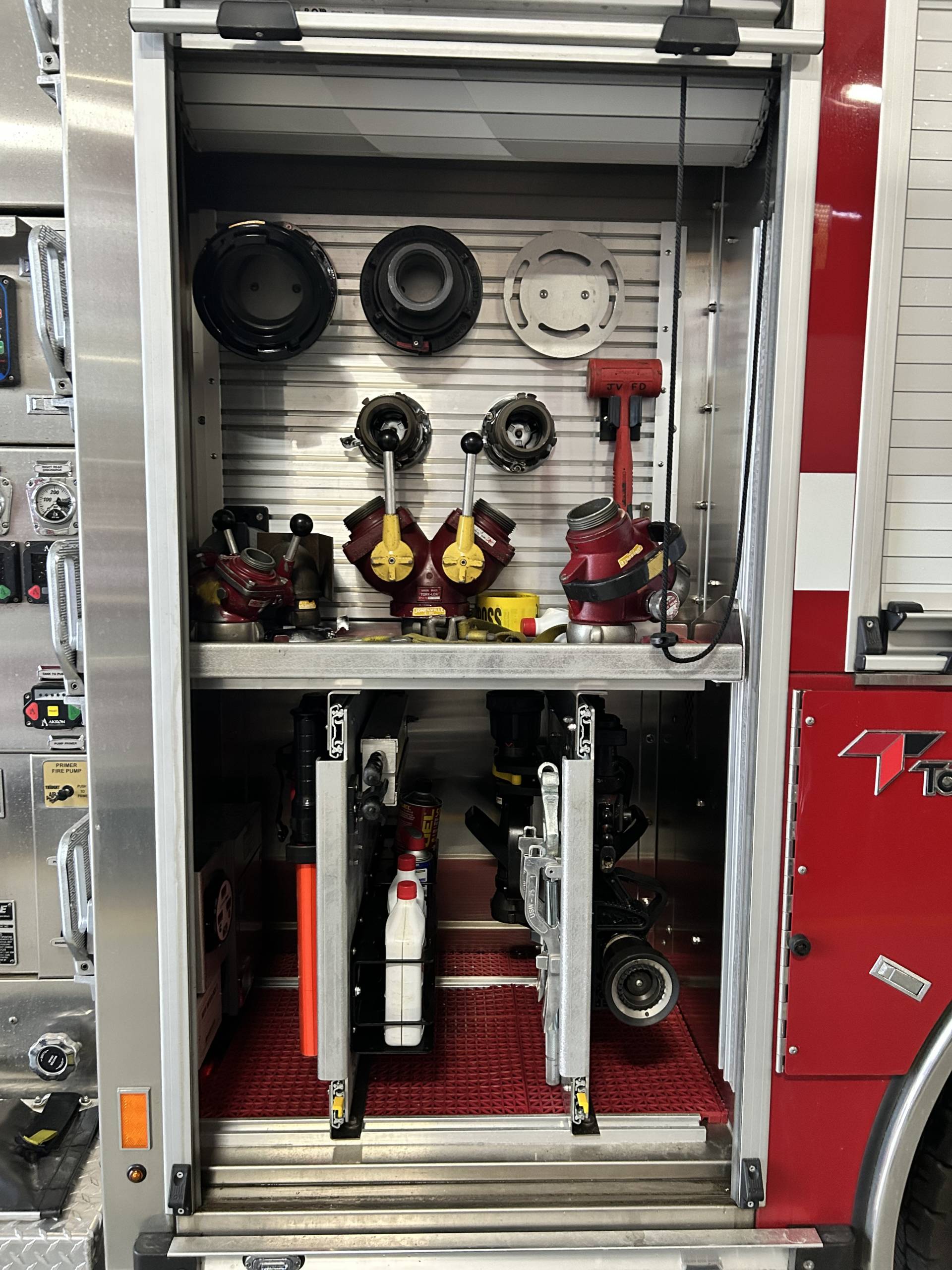

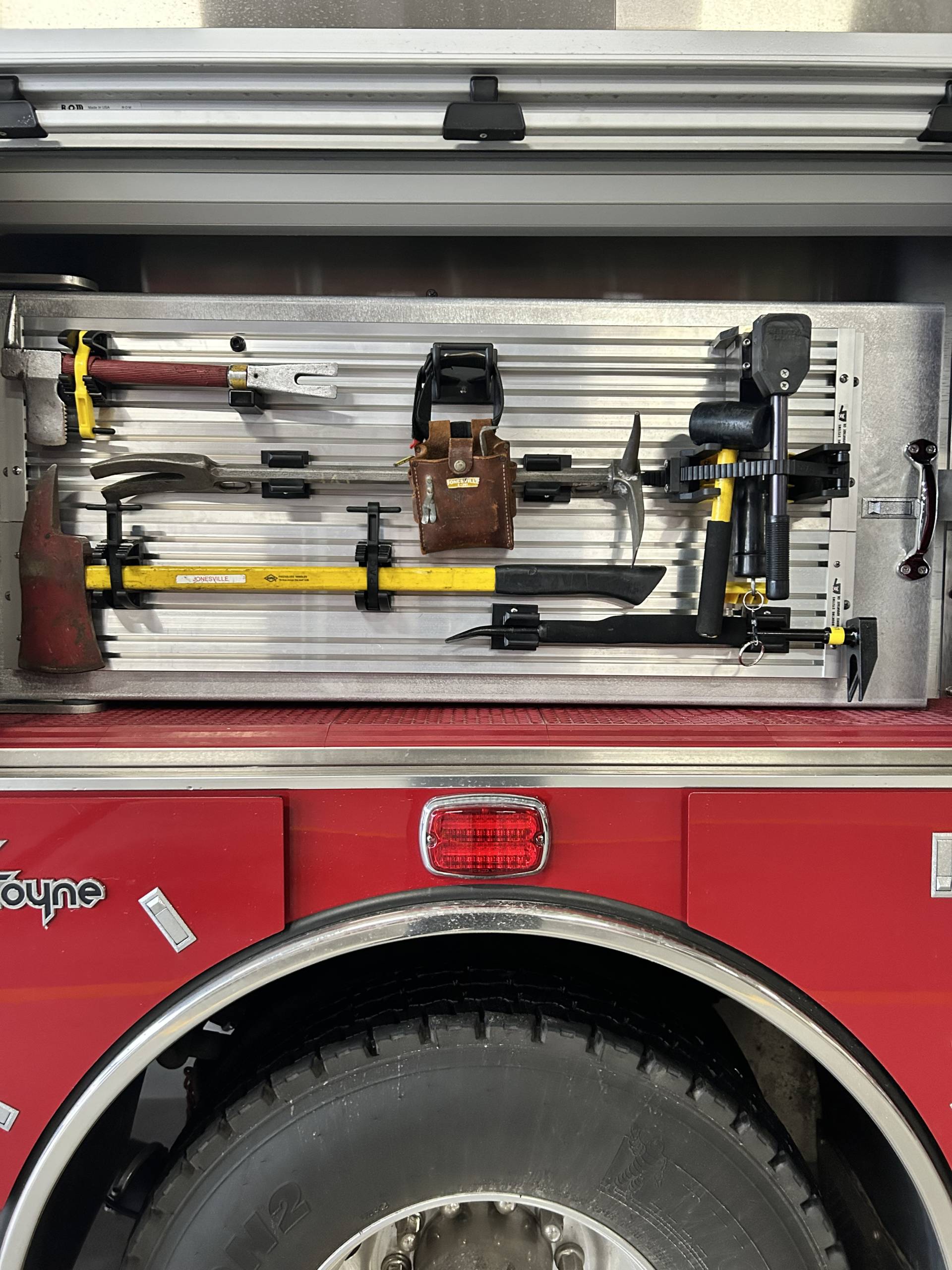

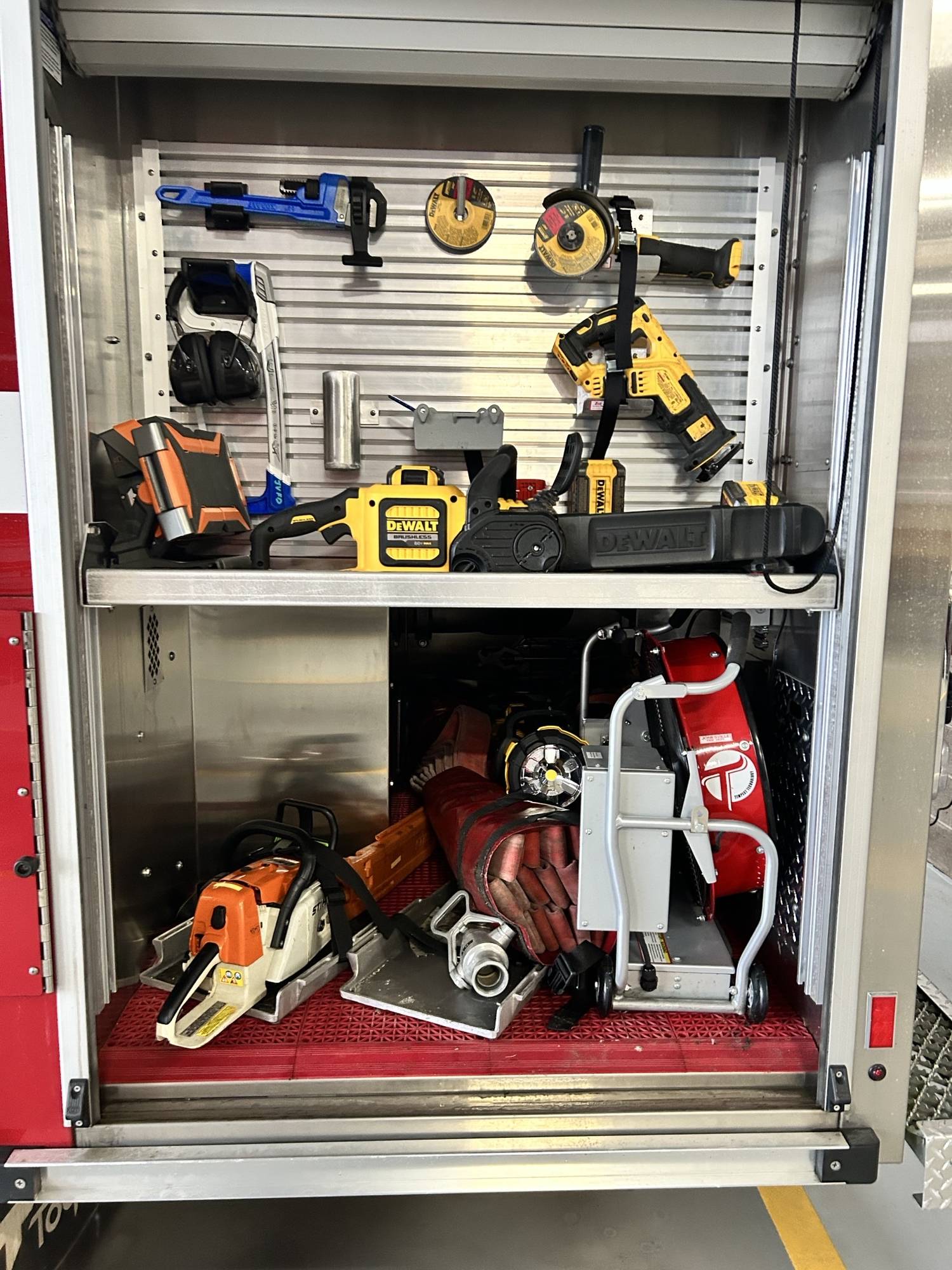

Images of the Exterior, Interior, and Side of the E-361 & E-371
